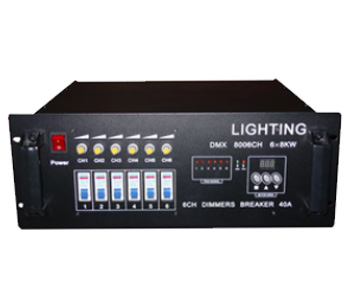

No.6 digital silicon case
Detail Info
No.6 digital silicon case
Power supply: AC220V plus or minus 10% / 50 + 1 hz
Loop: 6
Power: 8 kw/CH
The machine power consumption: Min. 25.6 W
The digital signal; DMX512
Analog signal: DC0 ~ 10 v / 2 ma
The dimming range; 1% - 100%.
Trigger accuracy; 256
Field; 24
Field operation time; 1-99 - s
Preheating ＆#118alue; 1% - 9%.
Air switch rated current; 40 a
The net weight 20 kg
Size 483 mm * 470 mm * 178 mm
